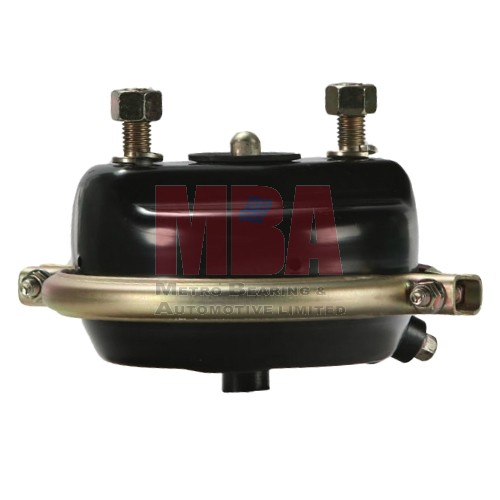

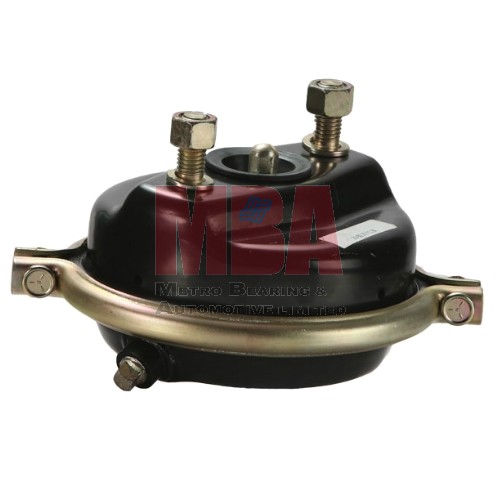

SINGLE DISC BRAKE CHAMBER : DS24R

More Views

SINGLE DISC BRAKE CHAMBER : DS24R
See price before order confirmation. What's this?

SERVICE BRAKE CHAMBER
(FOR DISC BRAKE APPLICATION)


[PRODUCT LEAFLET]

Description

Details

Stroke Length 15mm
Clevis n/a
Air Port Position
Clamp Band Position PERMANENTLY SEALED
Color BLACK,
ELECTRO-PAINTED
Size 24 (Inch)
Material METAL, RUBBER
Measurement IMPERIAL (Inch)
Working Pressure 800kPa
Maximum
Working Pressure
1MPa
Ambient Temperature -40 to +80
Life-Time SERVICE CHAMBER: 1,000,000 CYCLES
Performance ACCORDING TO
SAE-J2318 STANDARD
Additional Information

Additional Information

SKU CHAMBER-DS24R
Cross Reference No
Remarks

Packing: Brown Carton Box with MBA Logo
Bulk Pack: 4pcs/carton (24cartons/Pallet) or 200pcs/pallet
**Brake spring is in untightened and released state when packing and shipping.

Minimum Order Quantity (MOQ) 200
Incoterms (Int'l Comm. Terms) EX-WORKS (HONG KONG / CHINA)
[FOB / CFR / CIF: Quote separately]
Suggested Retail Price No
